GRH has a few hundred kinds of power units for different applications, which are compactly intergrated with high-pressure gear pumps, DC motors, integrated valve manifolds, fuel tanks and other components. The manual unloading valve is equipped with a micro switch. The lifting and lowering of the stacker is controlled by the handle of the unloading valve, and the descending speed is automatically controlled by the built-in pressure-compensated throttle valve.
• Customization design
• Compact structure, low noise, high efficiency and energy saving
• Self-made quality core components, stable and reliable performance
Specification
| Model | Motor | Discp. | Tank Cap. | Pressure | Installation | Port Size | L(mm) |
| (cc/r) | (L) | (MPa) | |||||
| DC-F6-1.6/F-1.6/12/**-5HS-D | 12V1.6KW2500RPM
|
1.6 | 5 |
20
|
Horizontal
|
G3/8
|
270 |
| DC-F6-2.1/F-1.6/12/**-6HS-D | 2.1 | 6 | 300 | ||||
| DC-F6-2.1/F-2.2/24/**-6HS-D | 24V2.2Kw2500RPM
|
2.1 | 6 | 300 | |||
| DC-F6-2.6/F-2.2/24/**-8HS-D | 2.6 | 8 | 370 |

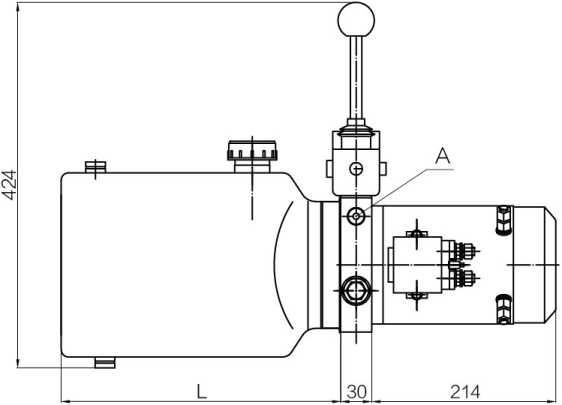

Dimensions
Guorui Hydraulic single-acting power unit can be adjusted according to customer requirements. It is widely used in the fields of car lifts, scissor lifts, docking bridges, pallet trucks, stackers, small aerial work platforms, snowplows and medical benches.
GRH can also customize hydraulic power units for you.
Application
