GKV80 Valve

PDF Download

GRH has 3 series of different sectional valve for different applications, GKV35, GKV50 and GKV80. The multi-way valve of the GKV series is a modular open multi-way valve, modules with different functions can be selected to meet the design of various complex systems.

• Compact size, light weight, meeting the requirements of small installation space

• Powerful function for different applications

• High machining accuracy, for an accurate tolerance

• cost effective, customizable, and complete system supply

Specification

Rated flow rate 80L/min Internal leakage(@70bar)A、B to T 15-20cc/min
Maximum flow rate 100L/min  Internal leakage(@70bar)A、B to T
Minimum flow rate 20L/min With P.O. check 2-5cc/min
Maximum pressure at P port 350bar Spool  stroke (1、2position) +7/-7mm
Maximum pressure at T port 350bar With floating function(1、2 and F position) +71-7 -10mm

Dimensions

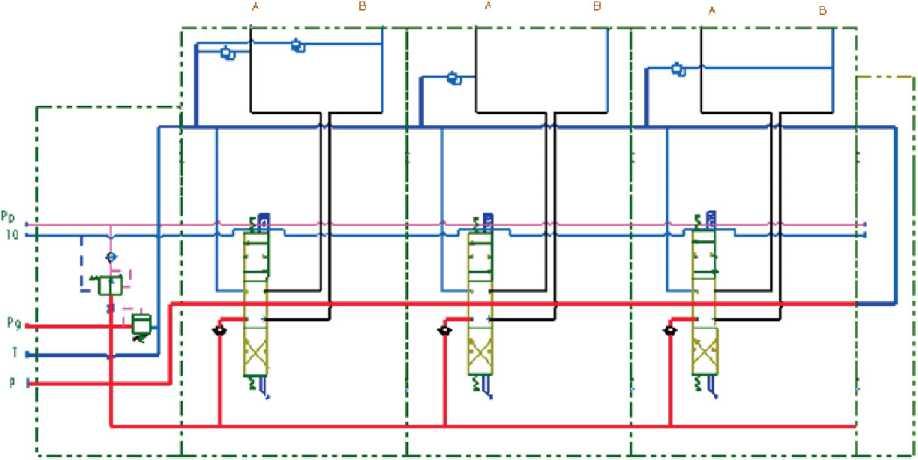

Electro-hydraulic Controlled with Manual Override

GRH GKV80 series sectional valve, because of its flexible assembly method, can integrate multiple functions. Widely used in agricultural machinery, construction machinery, and industrial equipment , etc.

Application
