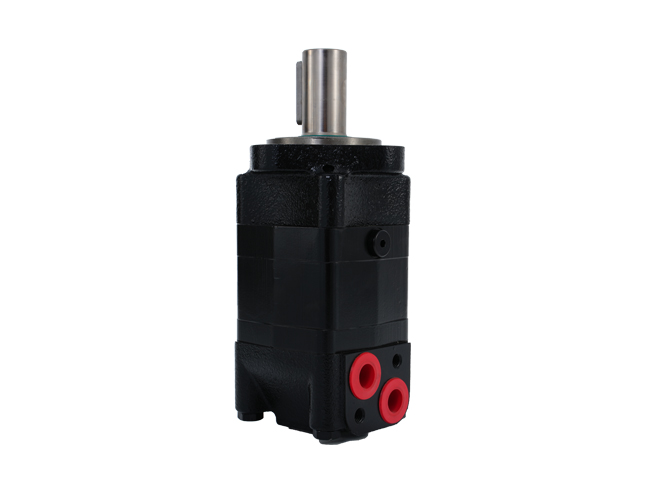

GKA Series Orbital Motor

GRH has GP, GR, GH, GS, GT, GV, GGM, GKA, GKB, GKC, GWD, GFA series orbital motors, GKA series orbital motor is a hydraulic motor with a disk distribution orbital motor. This series of motors uses a built-in rotor and stator set design. It has the characteristics of high working pressure, high working efficiency, and long working life. Multi-functional variant design can be carried out on the basis of standard structure according to different application requirement. Its characteristics:

• Adopting advanced rotor and stator parameter design, low starting pressure, high efficiency and good retention.

• High working pressure and large output torque. The tapered roller bearing structure is adopted, which has strong bearing capacity of shaft and radial load, so that the motor can directly drive the working mechanism, for a wider range of applications.

• The disk distribution structure makes the motor distribution accuracy high, and the automatic compensation ability after wear is strong, ensuring high volumetric efficiency and long motor life, ensuring stable motor speed and stable load speed characteristics

Online Inquiry Message Inquiry

Type		GKA34	GKA41	GKA66	GKA80	GKA90	GKA100	GKA130
Displ. cm³ /r [in³ /r]		34[2.1]	41[2.5]	66[4.0]	80[4.9]	90[5.5]	100[6.2]	130[8.0]
Max. Speed (RPM）	Continuous	1215	1104	1075	908	836	742	576
@ Flow	Intermittent	1215	1216	1214	908	1042	924	720
Flow	Continuous	42[11]	45 [12]	72[19]	75 [20]	75 [20]	75 [20]	75 [20]
l/min [GPM]		42[11]	53 [14]	87[23]	75 [20]	95[25]	95[25]	95[25]
Torque* Nm [lb – in	Continuous	98 [864]	112[988]	186[1643]	235 [2065]	265[2326]	295[2630]	385[3420]
	Intermittent	142[1261]	169[1497]	276 [2446]	345[3035]	390 [3458]	445[3950]	560[4970]
Pressure Δ bar [Δ PSI]	Continuous	205[3000]	205 [3000]	205[3000]	205[3000]	205 [3000]	205[3000]	205[3000]
	Intermittent	310[4500]	310 [4500]	310 [4500]	310[4500]	310[4500]	310[4500]	310[4500]
	Peak	310[4500]	310[4500]	310 [4500]	310[4500]	310 [4500]	310[4500]	310[4500]
Weight kg [lb]	Standard or Wheel mount	8.8[19.4]	8.8[19.4]	8.8[19.4]	9.3[20.5]	9.3[20.5]	9.5[21.0]	9.8 [21.5]
	Bearingless	6.8[15.0]	6.8[15.0]	6.8[15.0]	7.3[16.0]	7.3[16.0]	7.5[16.5]	7.7[17.0]

Type		GKA160	GKA195	GKA245	GKA305	GKA395	GKA490
Displ. cm³ /r [in³ /r]		160[9.6]	195[11.9]	245[14.9]	305[18.7]	395[24.0]	490[29.8]
Max. Speed (RPM）	Continuous	477	385	308	246	191	153
@ Flow	Intermittent	713	577	462	265	335	230
Flow	Continuous	75 [20]	75 [20]	75 [20]	75 [20]	75 [20]	75 [20]
l/min [GPM]		115[30]	115[30]	115[30]	115[30]	115[30]	115[30]
Torque* Nm [lb – in	Continuous	455[4040]	540[4780]	660[5850]	765[6750]	775[6840]	845[7470]
	Intermittent	570[5040]	665[5890]	820[7250]	885[7820]	925[2250]	120[1750]
Pressure Δ bar [Δ PSI]	Continuous	205[3000]	205[3000]	205[3000]	205[3000]	155[2250]	120[1750]
	Intermittent	260[3750]	260[3750]	260[3750]	240[3500]	190[2750]	140[2000]
	Peak	310 [4500]	310 [4500]	310 [4500]	310 [4500]	225[3250]	170[2500]
Weight kg [lb]	Standard or Wheel mount	10.0[22.0]	10.4[23.0]	11.3[25.0]	11.3[25.0]	11.8[26.0]	12.2[27.0]
	Bearingless	7.9[17.5]	8.4[18.5]	9.3[20.5]	9.3[20.5]	9.8[21.5]	10.2[22.5]

GRH GKA series orbital motors are widely used in conveying machines, road building machines, metal working machines, special vehicle, agricultural machines, mining machines and food industries.
