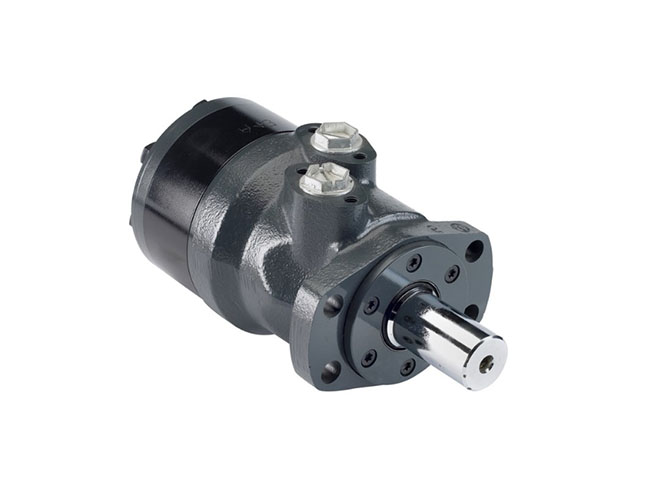

GH Series Orbital Motor

GRH has the GP, GR, GH, GS, GT, GV, GGM series orbital motors. GH series orbital motor is a shaft distribution motor that can be installed and used in a small space.
• Using integral rotor and stator set, high power density
• Higher efficiency, higher speed, longer service life
• The shaft seal bears high pressure and can be used in series or parallel
• Constant temperature and dust-free workshop, high precision parts processing

Specification

Type		GH200	GH250	GH315	GH400	GH500
Displacement cm3/rev[in3/rev]		201,3[12.3]	252[15.4]	314,9[19.2]	396,8[24.2]	502,4[30.7]
Max. Speed, [RPM]	Cont.	370	295	235	185	150
Max. Speed, [RPM]	Int.*	445	350	285	225	180
Max. Torque daNm[lb-in]	Cont.	51[4510]	61[5398]	74[6548]	84[7434]	82[7257]
	Int.*	58[5130]	70[6195]	82[7257]	98[8673]	104[9204]
	Peak**	64[5064]	79[6992]	98[8673]	109[9647]	117[10350]
Max. Output	Cont.	16[21]	16[21]	14[18.7]	12,5[16.7]	11[14.7]
kW[HP]	Int.*	18,5[24.8]	18,5[24.8]	15,5[20.7]	15[20.1]	14[18.7]
Max. Pressure Drop bar[PSI]	Cont.	175[2540]	175[2540]	175[2540]	155[2240]	125[1810]
	Int.*	200[2900]	200[2900]	200[2900]	190[2750]	160[2320]
	Peak**	225[3260]	225[3260]	225[3260]	210[3045]	180[2610]
Max. Oil Flow lpm[GPM]	Cont.	75[19.81]	75[19.81]	75[19.81]	75[19.81]	75[19.81]
Max. Oil Flow lpm[GPM]	Int.*	90[23.78]	90[23.78]	90[23.78]	90[23.78]	90[23.78]
Max. Inlet Pressure bar[PSI]	Cont.	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]
	Int.*	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]
	Peak**	250[3626]	250[3626]	250[3626]	250[3626]	250[3626]
Max. Starting Pressure with Unloaded Shaft [bar PSI]		5[72]	5[72]	5[72]	5[72]	5[72]
Min. Starting Torque daNm[lb-in]	At max. press. drop Cont.	39[3450]	52[4600]	66[5840]	72[6370]	72[6370]
Min. Starting Torque daNm[lb-in]	At max. press. drop Int.*	45[3980]	59[5221]	73[6460]	88[7788]	88[7788]
Min. Speed*** [RPM]		10	10	8	5	5
Weight [kg lb] For rear ports+0,650[1.433]		10,5[23.2]	11[24.3]	11,5[25.4]	12,3[27.1]	13[28.7]

Dimensions

GRH GH series orbital motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment, engineering machinery, forest machinery and agricultural machinery.
