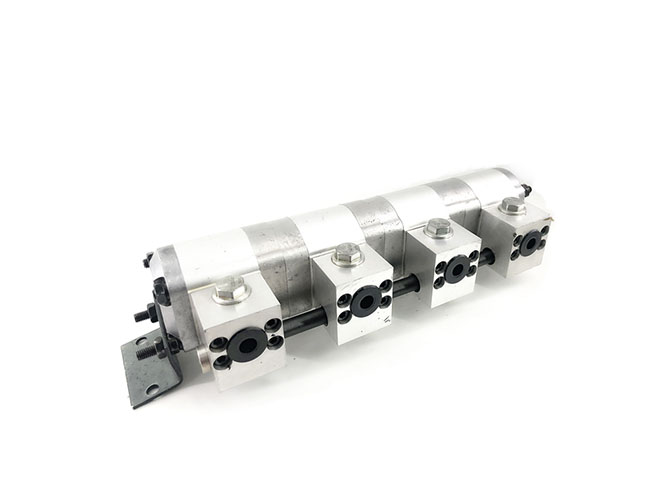

1AFDF Flow Divider

PDF Download

GRH has three series of flow divider, 1FDF, 2FDF and 3FDF, with a displacement of 1.6~70ml/r. Two or more gear motors can be connected by a coupling to form a gear type flow divider,  which can ensure the synchronous operation of the actuators and obtain higher synchronization accuracy. It can be integrated with relief valve, one-way valve, speed control valve, to protect the system, oil replenishment and other functions. GRH flow divider accuracy can reach ±1.5%-±2%.

• Displacement 1.6~9ml/r, pressure loss 16~19bar

• Ensure synchronous operation of actuators

• High synchronization accuracy

Specification

Displacement

(ml/r)

SAE Port Minimum Flow Maximum Flow Cont. Diff Between Pressure Inlet/Outlet
Inlet Outlet
2.0 G1/2 G3/8 1.0 4.0 200
3.0 G1/2 G3/8 1.5 6.0 200
4.1 G1/2 G3/8 2.1 8.2 200
5.1 G1/2 G3/8 2.55 10.2 200
6.1 G1/2 G3/8 3.05 12.2 200
7.0 G1/2 G3/8 3.50 14.0 200

Dimensions

Applications

GRH 1FDF gear divider is widely used in industrial equipment, storage equipment, agricultural machinery, etc.
